Seismic, Shock and Vibration Switchgear
Fully type tested
Seismic, Shock and Vibration Switchgear
Manufacturers of type tested switchgear and control equipment for MOD’s worldwide
Fully tested with welded construction

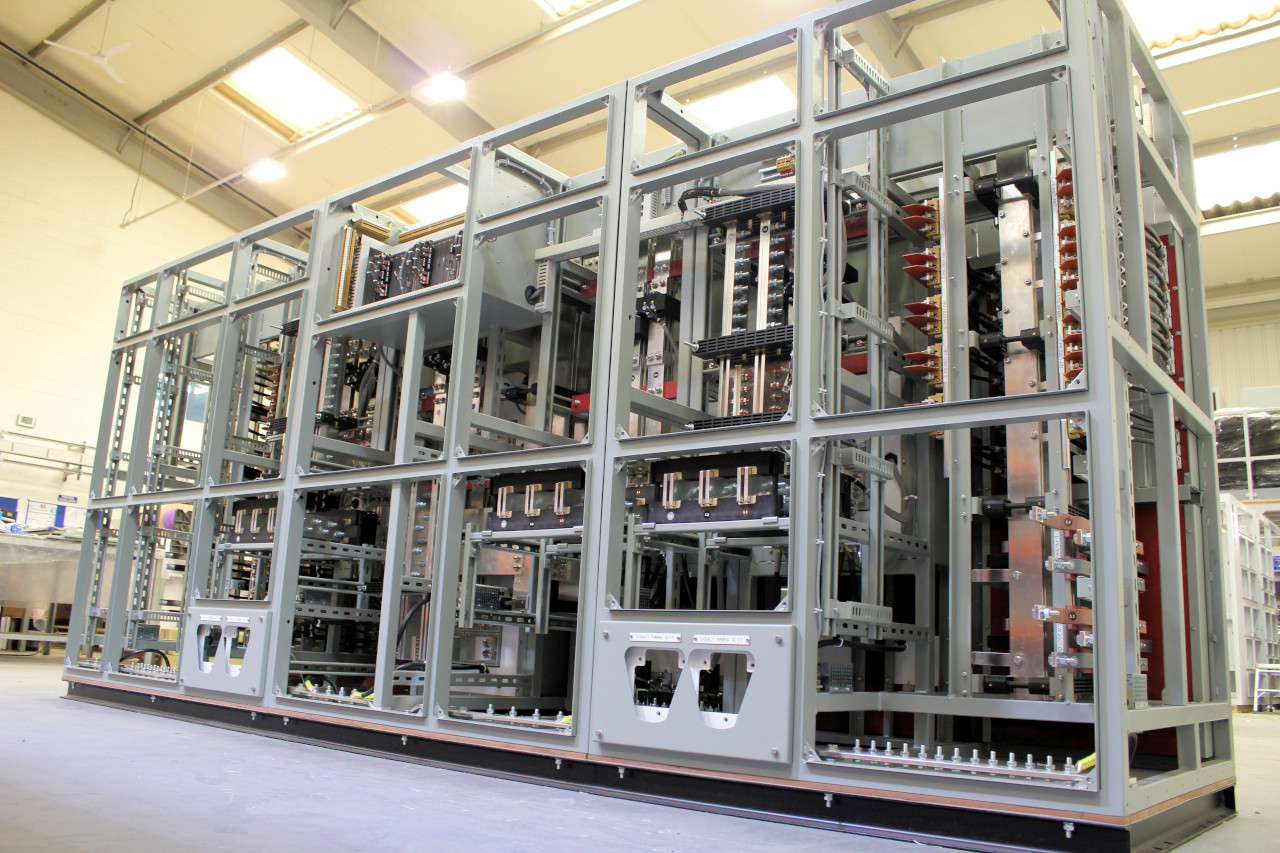

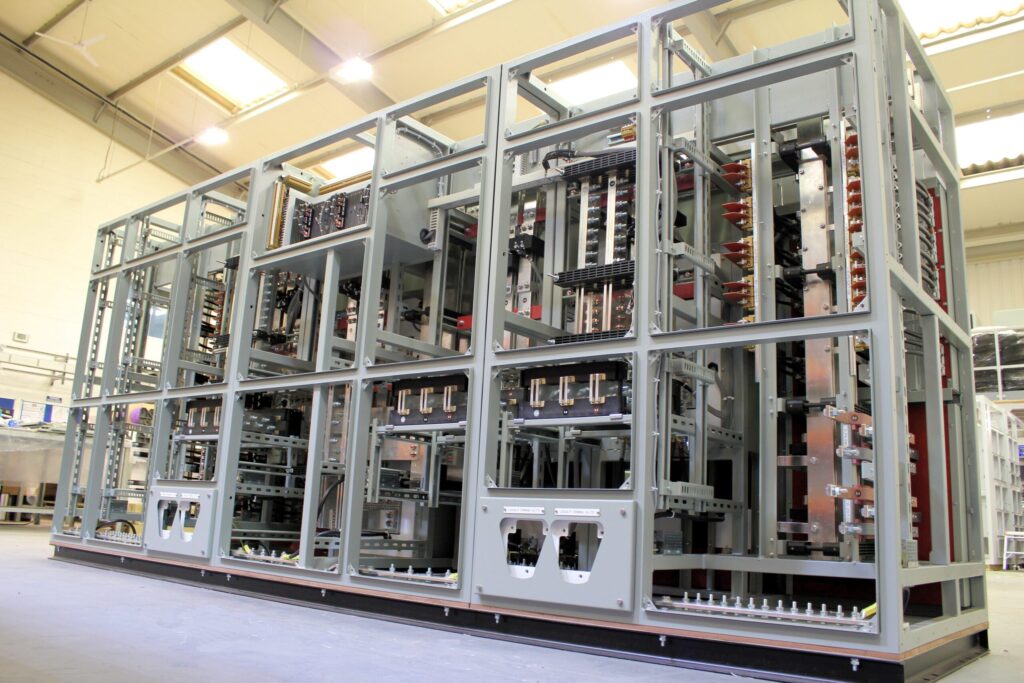

Our range is fully type tested with fully welded construction incorporating an RHS steel framework with fitted covers and doors or welded steel sheet depending on size and level of shock. We also manufacture in aluminium where weight or magnetic attraction is an issue.
Features and options
- Fully welded construction cubicles
- Manufactured in steel and aluminum
- All forms of separation available
- Main switchboards shock test certified up to 20g 11ms, control panels up to 70g to BS EN 60068-2-27:2009
- Vibration certified to MIL STD 167-1A:2005 4-33Hz
- LOVAG/ASTA Certified busbar systems
- Plated busbars
- Front and rear access designs suitable for top or bottom entry cables
- Standard paint finish RAL 7032 Light Grey with all other RAL and BS colours available on request
- Ingress protection of IP31 as standard with ratings available up to IP54
- All types of functional units available including MCCB’s, Fuse witches and MCB or fuse boards in fixed, draw out and plug-in formats
- Comprehensive range of metering options
- Provisions for thermographic surveys can be incorporated
- Wall or floor mounting options
- Exported worldwide
